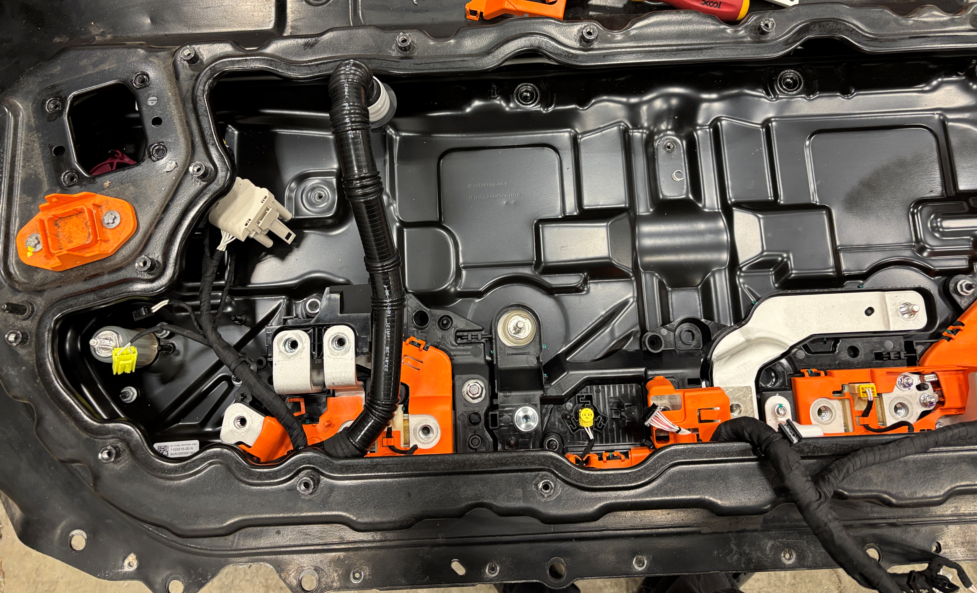

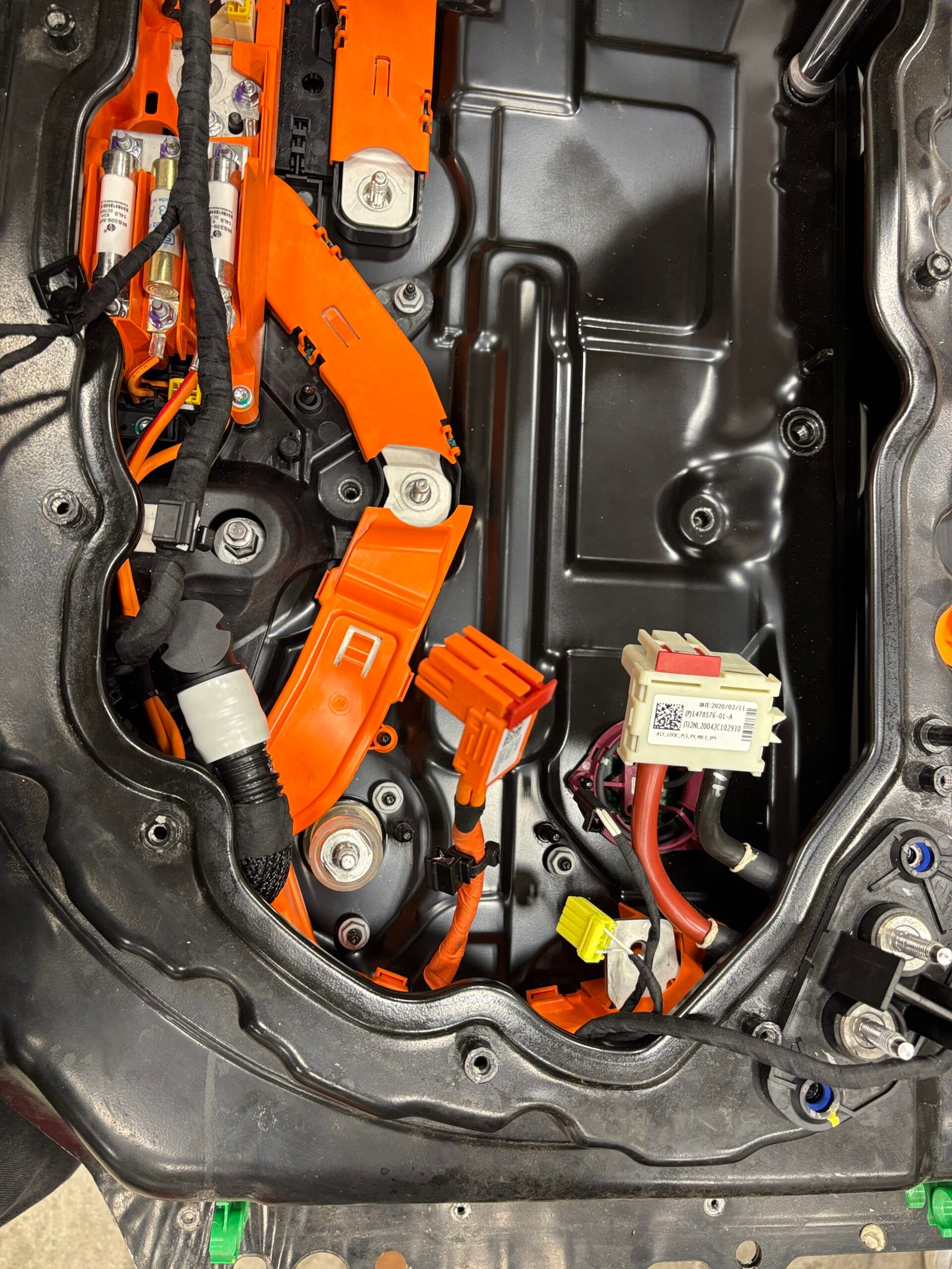

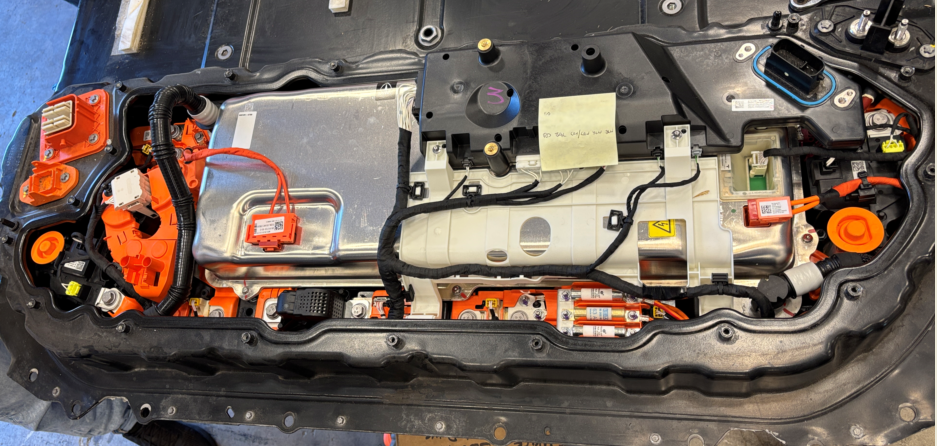

Tesla Power Conversion System (PCS)

FEATURES:

* Actual components used in a vehicle
* PCS labeling clearly identifies components
* Can be assembled and disassembled over and over
* Rugged cart with self-contained box

BENEFITS:

* Students can work on real components at a safe voltage
* Provides a quick and easy understanding of the PCS
* Portable design allows teaching anywhere with ADA access

STUDENT LEARNING OUTCOMES:

* Describe the purpose and function of the PCS
* Assemble the components and wiring of the PCS in a battery system
* Determine which failures can be replaced within the PCS

TECHNICAL INFORMATION:

* Dimensions: 72” x 36” x 48”
* Weight: 250 lbs
* All High Voltage Batteries Removed
* Great for High Voltage Training
