Battery Fundamentals Lab
$995.00
Learn by doing Battery Lab
This lab exercise provides hands-on experience with series and parallel circuits, relating them directly to electric vehicles (EVs) and solar energy systems. Using batteries and multimeters, students will construct and analyze both circuit types.
The exercise teaches the practical application of configurations: series circuits increase total voltage for EV powertrains, and parallel circuits boost current capacity and system resilience, crucial for solar installations and large battery packs.
Students measure and verify electrical properties, gaining troubleshooting skills and understanding how basic circuit designs scale to complex power systems in the green energy sector. This activity connects theoretical knowledge to real-world applications in sustainable technology, preparing them for future careers in this growing field.
STUDENT LEARNING OUTCOMES:
* Understand the differences between series and parallel configurations.
* Explain the purpose and function of batteries for energy storage.
* Troubleshoot battery system failures and corrective action.
* Demonstrate industry standard safe wiring techniques.
* Analyze risks and safety procedures as voltage levels increase.
LAB KIT INCLUDES:

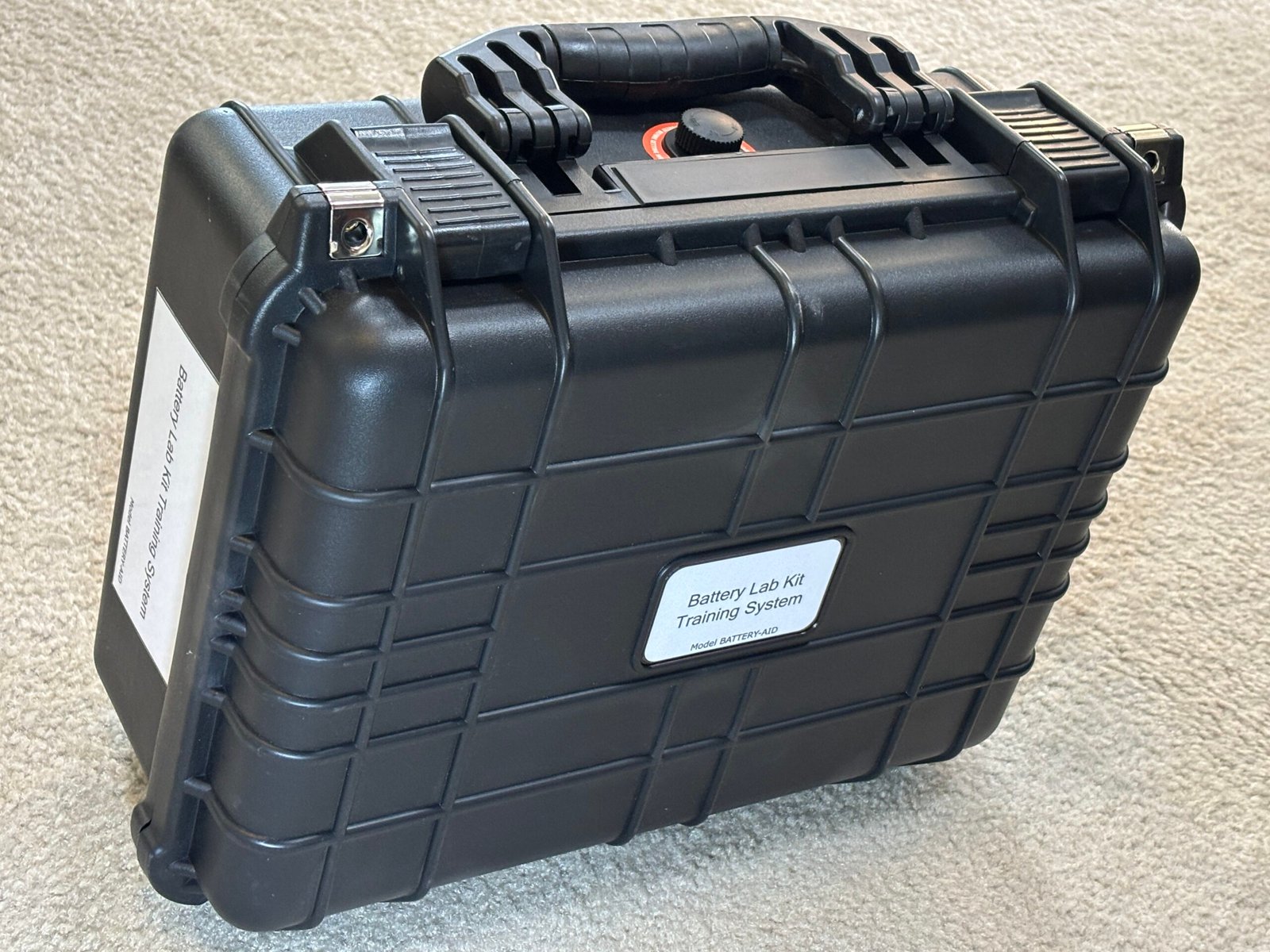

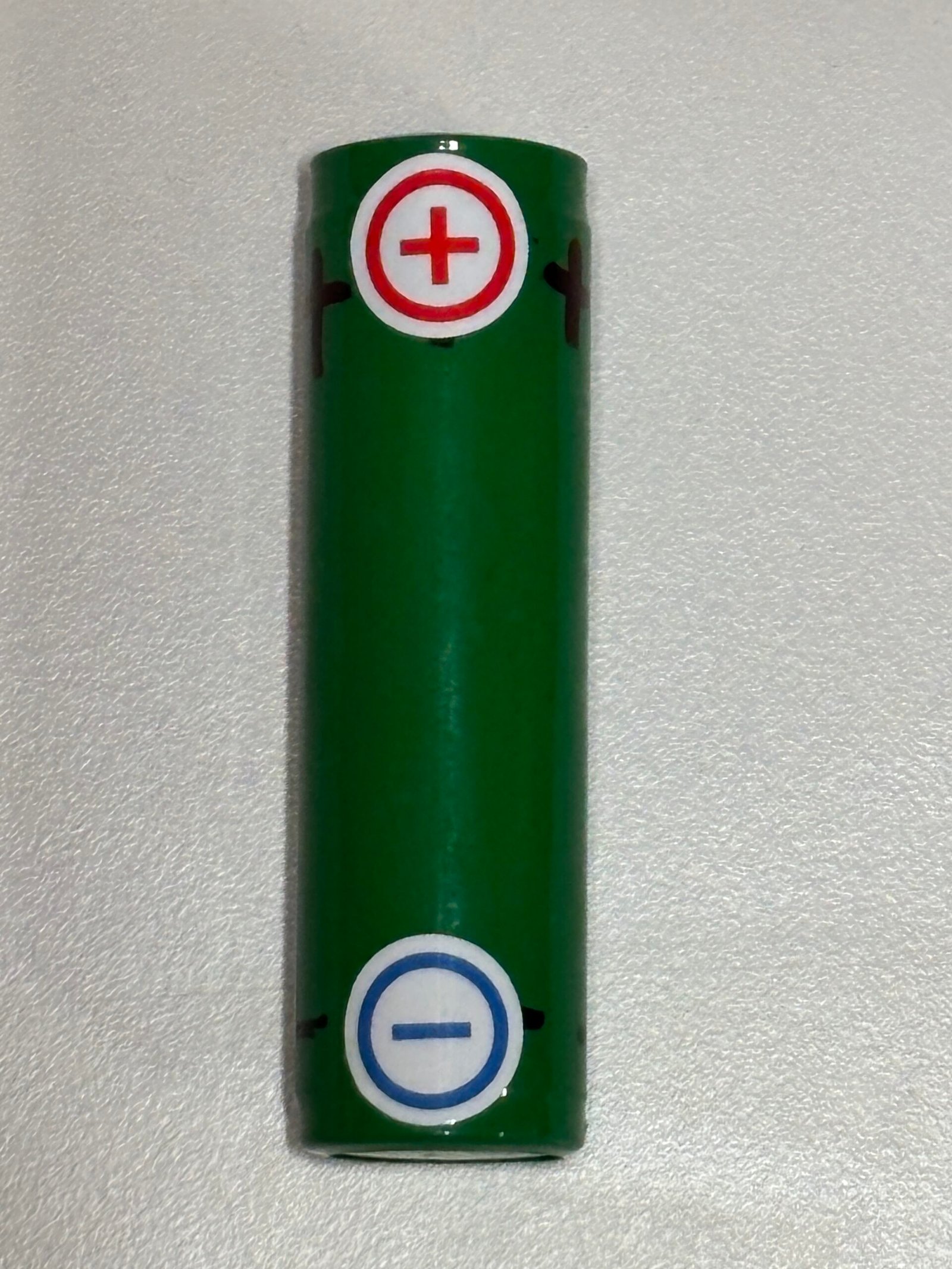

* 8 Lithium Ion 18650 battery cells in protective case

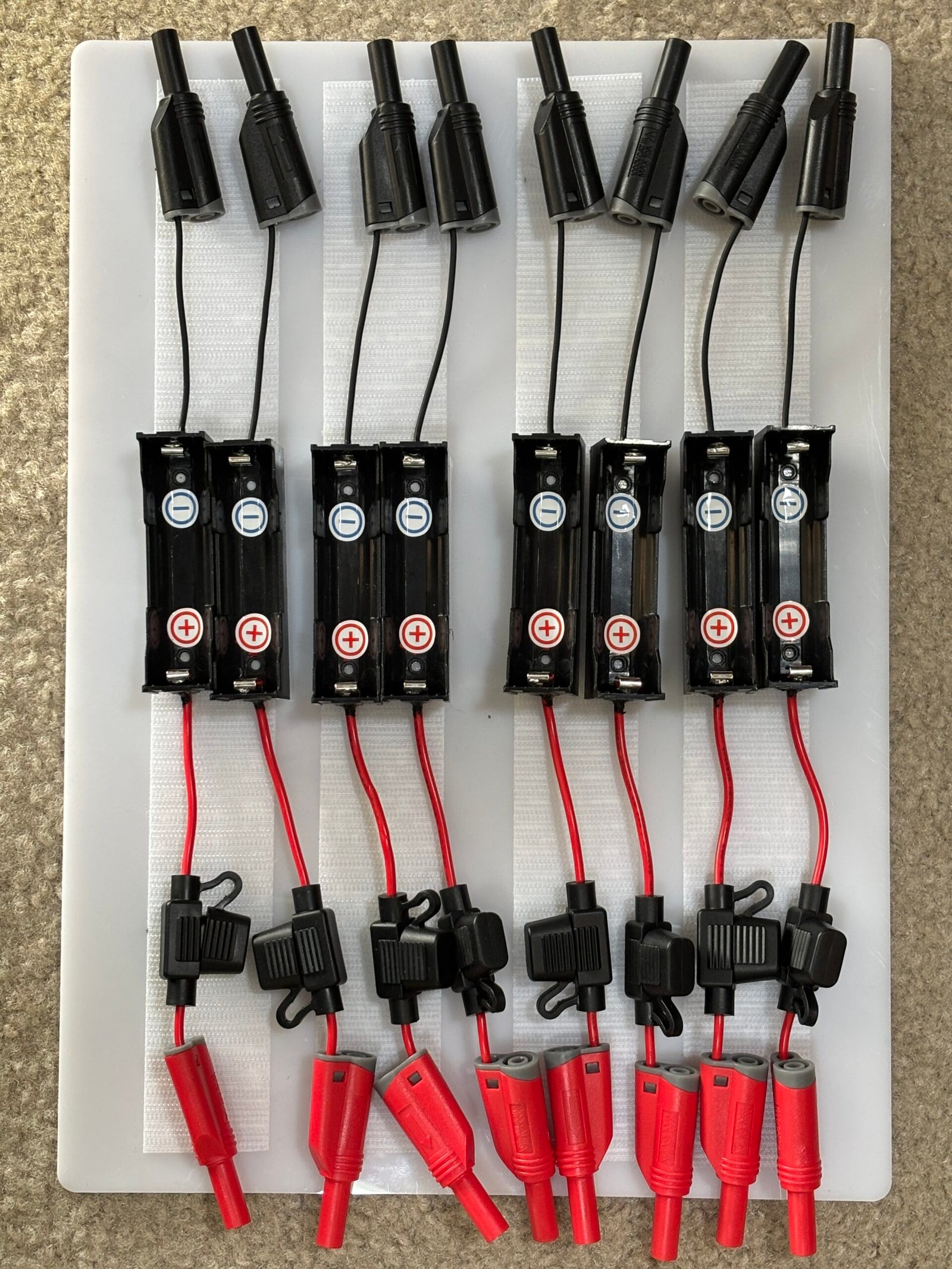

* 8 single cell fused battery holders
* Resistor
* Wiring and connectors
* Lithium battery 18650 charger
* Instructors guide with lab experiments

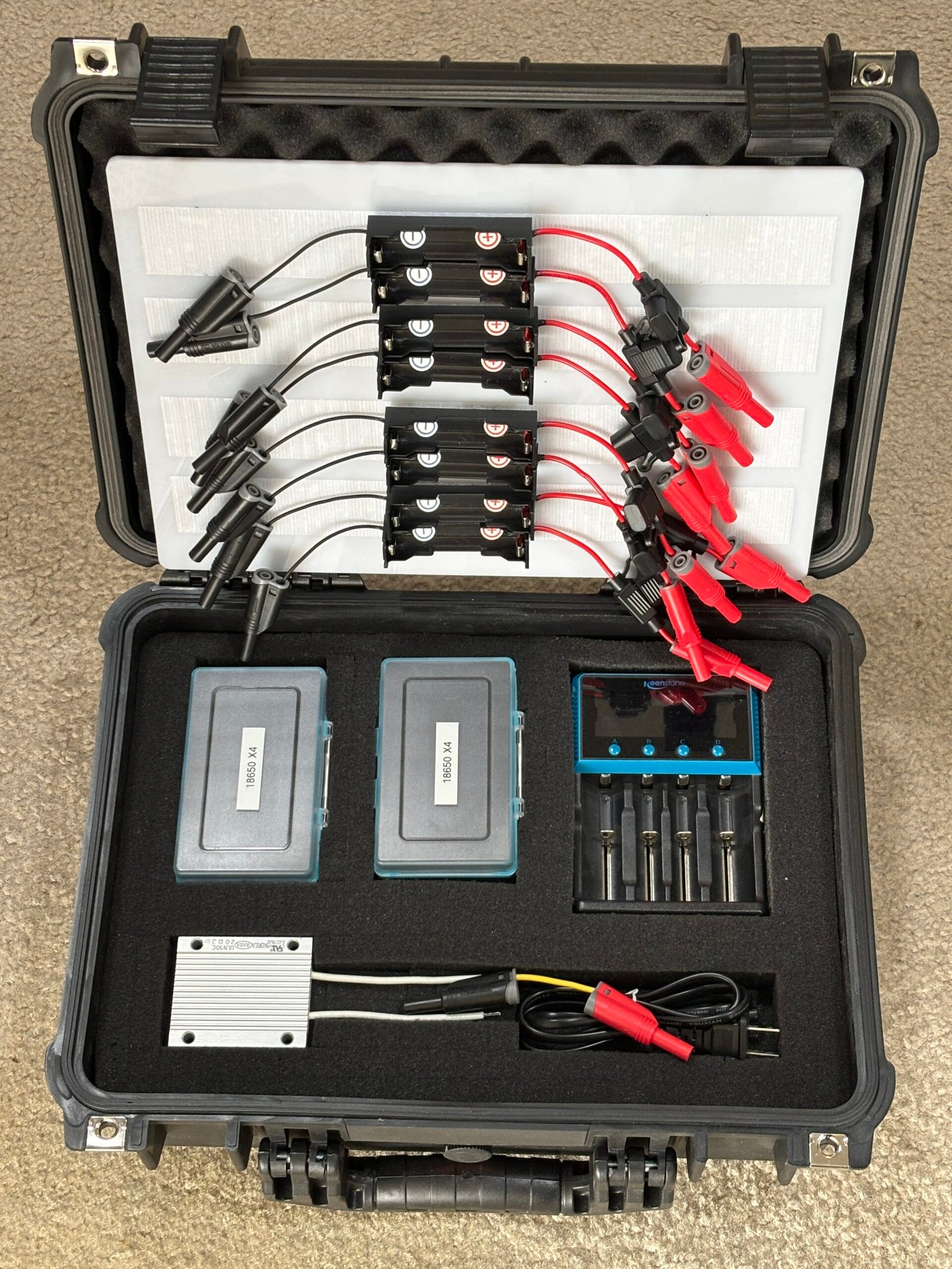

* Storage case with foam cutouts to keep everything together
PROJECT ACTIVITIES (2-3 Students per lab):
* Test cells for open / short / resistance
* Assemble batteries in both series and parallel configurations
* Apply circuit loads to see the effect of voltage and capacity
* Learn how to parallel balance and importance of safety
TECHNICAL INFORMATION:
* Dimensions 30” x 13” x 16”
* Weight 23 lbs
* Voltage when assembled as designed 25.2 max
